Compact Charger for Electric Cars
The Akyga® AK-EC-18 is a single-phase EV charger designed for electric car owners equipped with a Type1 connector. It allows vehicles to be charged using a standard household electrical socket. Thanks to the Schuko plug (CEE 7/7), which is commonly used in most European countries, this charger is a practical and universal solution for users of older EVs or vehicles imported from overseas.

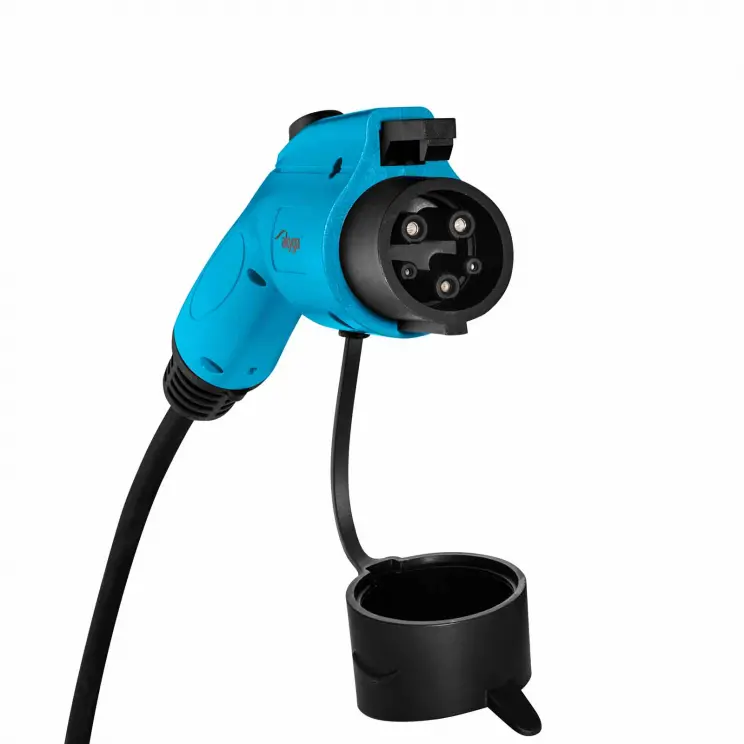

Practical Connectors and Convenient Use
Connector
Type 1
|
Connector

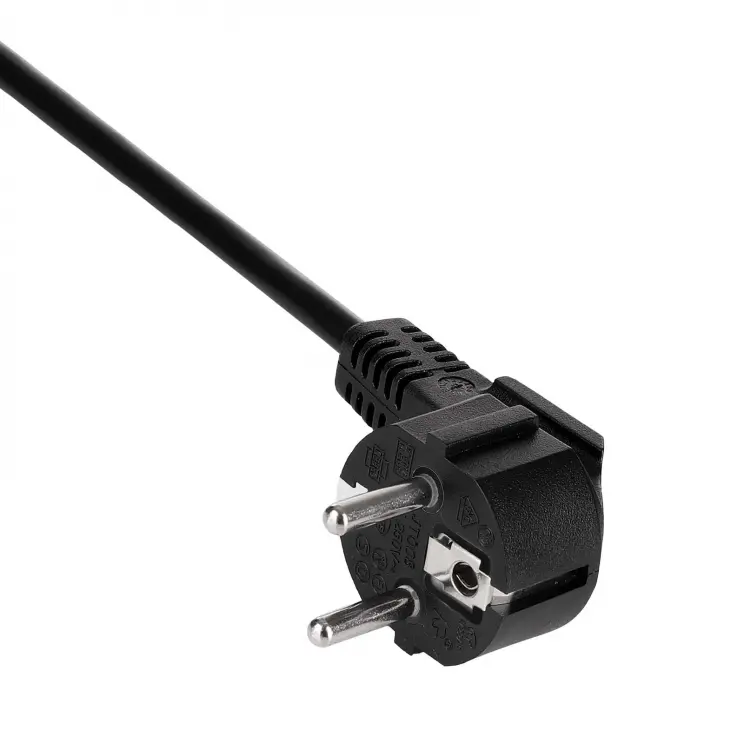

Schuko (CEE 7/7)
|
Rated current
8 A / 10 A / 13 A / 16 A
|
Charger length
5m
|
The electric car charger is equipped with a 5-metre cable, which provides great flexibility when connecting the vehicle to power. The long cable and the compact design of the charger make it the ideal device for electric car owners. Regardless of where the socket is installed, the AK-EC-18 charger guarantees convenient and efficient charging of your vehicle.

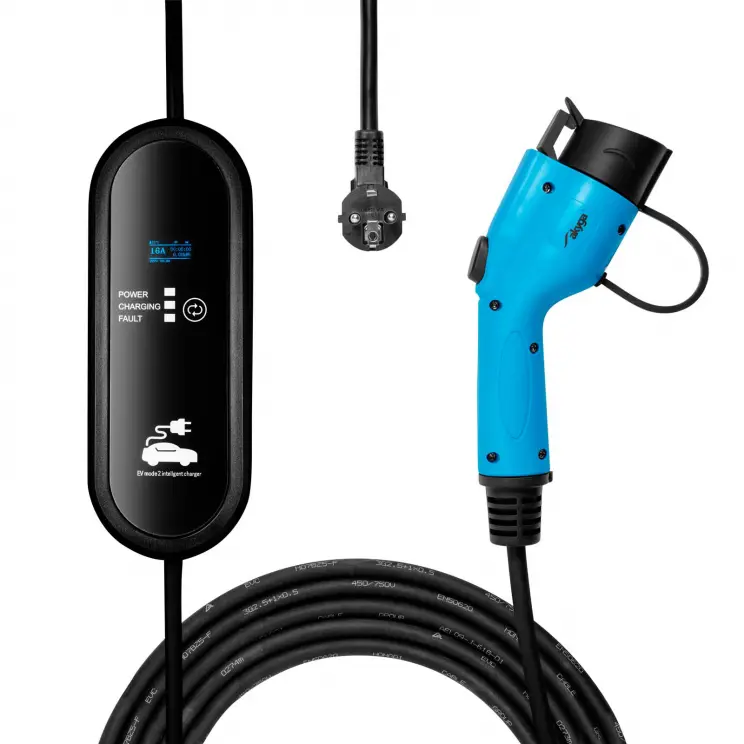

Intuitive ControlBox — the Heart of the Electric Car Charger
The central element of the EV charger is the easy-to-use ControlBox with LCD display, which monitors and presents the current charging parameters. The screen allows users to observe data such as charging current, voltage, power, energy consumed, device temperature and charging time can be observed on the screen. The user can adjust the charging power by selecting one of the available current values: 8 A, 10 A, 13 A, 16 A, with a maximum charging power of 3.8 kW. These functions allow full control over the charging process and customisation.
Comprehensive Protection
The safety of using the AC electric car charger is ensured by advanced protection systems such as OVP (over voltage protection), OCP (over current protection), OPP (overload protection), OTP (overheating protection) and SCP (short circuit protection). These comprehensive protections protect both the charger and the car battery, minimising the risk of damage and ensuring safe charging.
Overcurrent protection. The charger will switch off if it detects an overload of the stabiliser.
Thermal protection protects against overheating of the power supply, which could result in damage.
Protection against overvoltage at the charger's output. Protects the device being charged from damage.
The built-in temperature sensor in the plug ensures safety and protects against the consequences of overheating the battery in the car. Thanks to a suitable controller, the device regulates the parameters so as to maintain the optimum temperature during the charging process.
Durable and Robust Charger Design
Fire resistance
UL94V-0
|
Adjustment
current
|
Degree of protection
IP54
|
Resistance
2t
|
The Akyga® AK-EC-18 charger has been designed for reliable operation. The robust construction and high-quality materials guarantee the durability of the device, which is key to its long-term use. The charger is also equipped with a handle, which allows the device to be hung up, for example in the garage, making it more convenient to use and store.
Stylish Carrying Case
The AK-EC-18 charger comes with an elegant carrying bag for easy storage and transportation. The stylish pouch is not only a practical addition, but also increases the mobility of the device, allowing it to be easily carried. This is the perfect solution for those who value convenience and want to ensure that their charger is always at hand, no matter where they are.
The product is suitable for charging the batteries of electric cars, such as:
- Chevrolet Spark EV
- Chevrolet Volt
- Citroen C-Zero
- Fisker Karma
- Ford C-Max Energi
- Ford Focus Electric
- Ford Fusion Energi
- Hinda Fit EV
- Hyundai Ioniq Electric
- Hyundai Sonata Plug-in Hybrid
- Kia Soul EV
- Mia Electric Car
- Mia Electric Van
- Mistubishi I-Miev
- Mitsubishi Outlander PHEV
- Nissan Leaf (before 2018)
- Nissan NV200 SE VAN
- Opel Ampera
- Peugeot Galicia
- Peugeot iOn
- Smiths Edison VAN
- Smiths Newton
- Tata Indica Vista EV
- Toyota Prius Plug-in Hybrid (before 2017)
