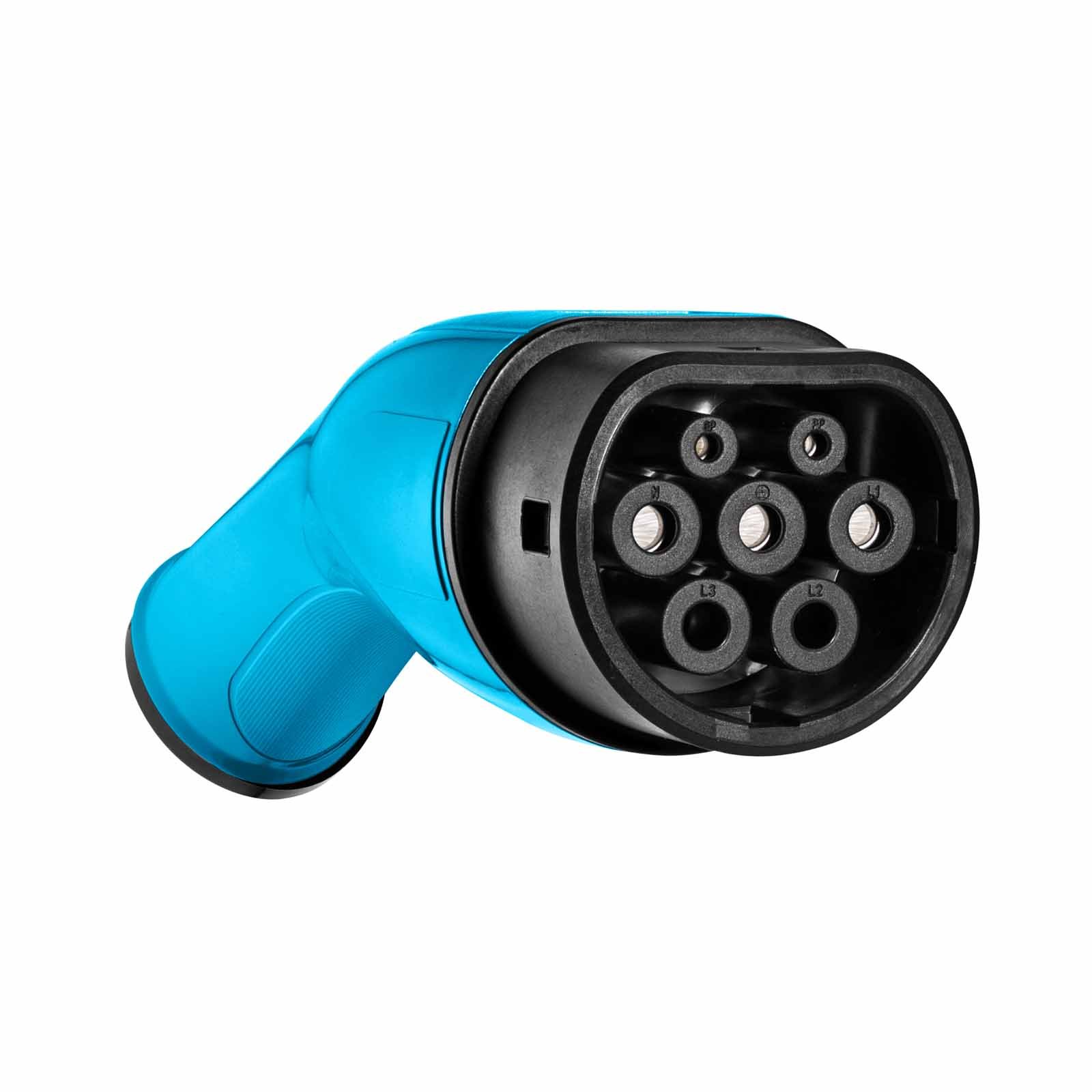

Akyga® AK-SC-E04 plug will be ideal as a replacement for the damaged Type 2 connector. It is characterized by high resistance to drops. What's more, silver plated connectors with increased resistance allow to load the plug with a rated current of 32 A. This makes it possible to use it in both single-phase installations. Or are you planning on replacing your old American-made electrician with a new European one? You have a wallbox with a Type 1 connector and need Type 2 (IEC62169-2)? No problem! Just change the plug for a new one!
Included with the plug is a 220 ohm resistor, which is necessary for proper vehicle charging. Installation should be carried out by a suitably qualified person. Incorrect installation of the connector can cause material damage as well as loss of health or life (e.g. by electric shock).
- Product code AK-SC-E04
- Number of phases 1 phase
- Output amperage 32 A
- Power supply connector Type 2 (IEC 62196-2) Female Connector
- Plated plugs Silver
- Product color Blue
- Product size (L x W x H) 220 x 95 x 75 mm
- Package size (L x W x H) 225 x 100 x 77 mm
- Net weight 419 g
- Gross weight 425 g
- EAN code 5901720136893
