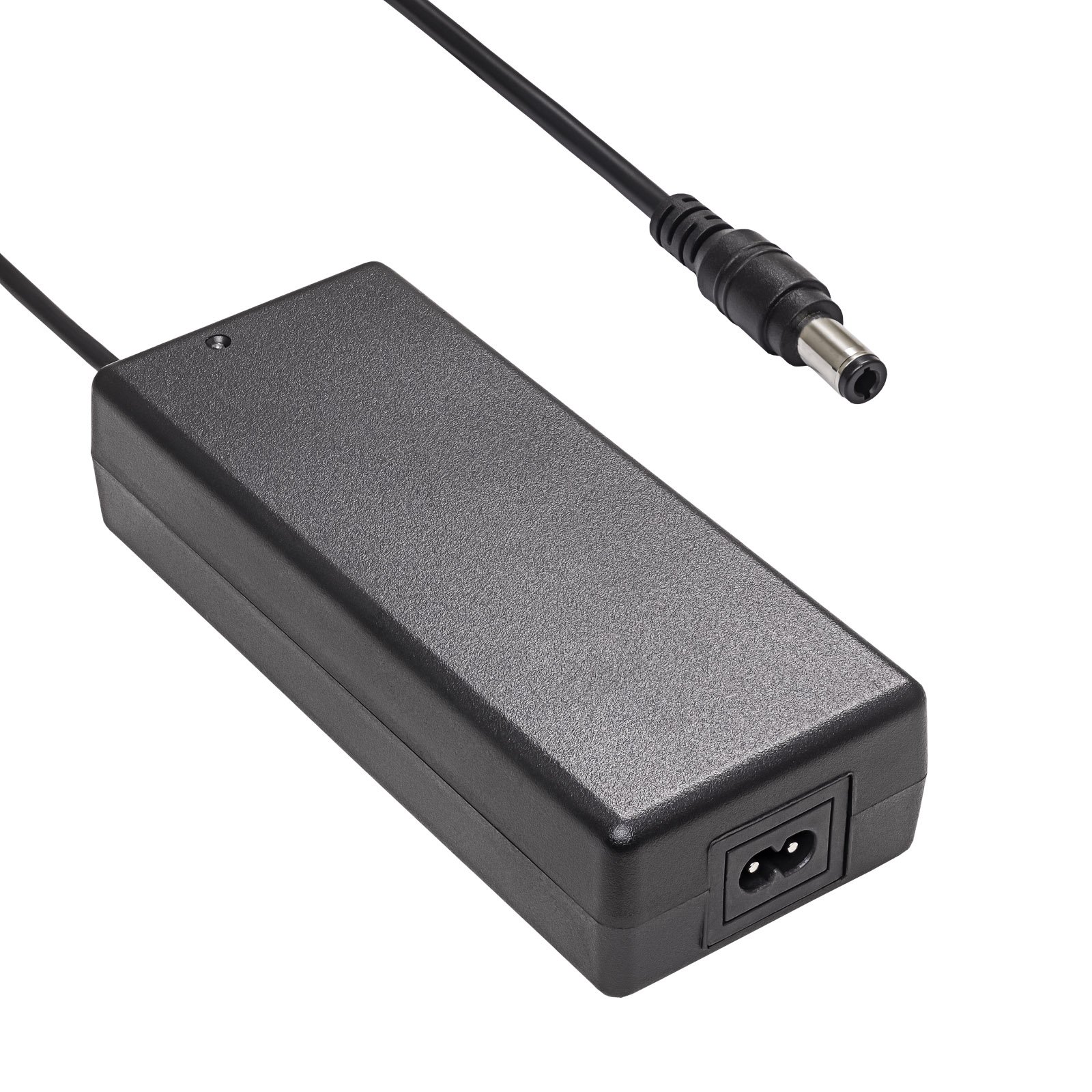

Akyga® AK-EV-06 is a product designed for charging bicycles and electric skateboards equipped with 48 V batteries. The device charges with a maximum power of 110 W with output parameters 54.6 V / 2 A. The output cable of the charger with a length of 1 meter is ended with the 5.5 x 2.1 mm plug, and the charger itself is powered by an IEC C8 connector. The device is characterized by high efficiency and reliability. It also has a LED control changing its colour from red to green when the charging process is completed.
The charger is compatible with popular vehicle models such as Archos, Koowheel, etc.
The product is available in black, packed in environmentally friendly Ecobox.
The power supply is compatible with bicycle brands like Haibike, Merida, Batavus, Ecobike, Giant, Fischer, Freway, Gazelle, etc.
- Product code AK-EV-06
- Product type AC/DC adapter
- Supply voltage 100-240 V
- Power consumption < 2.5 A
- Efficiency > 80 %
- Output voltage 54.6 V
- Output amperage 2 A
- Outlet cord length 1 m
- Output connector DC 5.5 x 2.1 mm
- Maximum power 110 W
- Power inlet IEC C8
- Mechanical switch None
- Ground wire None (II protection class)
- IP Rating IP20
- OVP Yes
- OCP Yes
- OPP Yes
- SCP Yes
- Ferrite filter None
- Power cable included None
- Material ABS
- Product color Black
- Backlight color Bicolor diode
- Display None
- MTBF 10000 h
- Package EcoBox
- Product size (L x W x H) 170 x 40 x 72 mm
- Package size (L x W x H) 250 x 46 x 111 mm
- Net weight 452 g
- Gross weight 591 g
- CE compatibility Yes
- RoHS compatibility Yes
- REACH compatibility Yes
- EAN code 5901720135933
- Warranty 24 months
