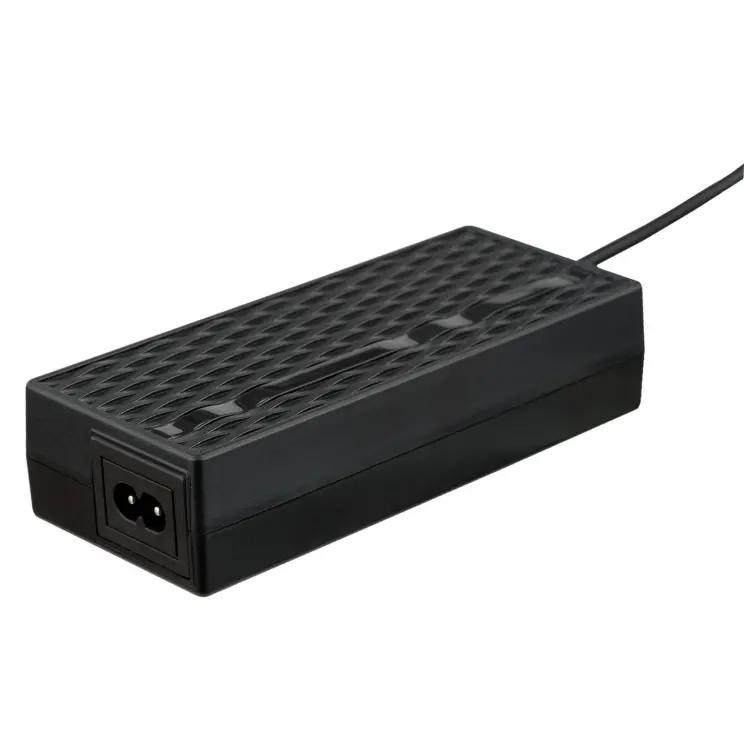

Akyga® AK-EV-03 is a product in the field of bicycle chargers and electric scooters. The device is equipped with the popular IEC C8 power socket. The charger output cable (1 m long) is terminated with Cannon XLR plug, characterized by high resistance to mechanical damage. At 42 V / 2 A output, the product charges with a maximum power of 84 W. The device is dedicated for charging scooters and eBikes equipped with 36 V batteries. The charger has a high efficiency exceeding 80%. It is also equipped with an LED control signaling about the duration or completion of the charging process. Available in black, packed in eco-friendly Ecobox.
The power supply is compatible with bicycle brands like Haibike, Merida, Batavus, Ecobike, Giant, Fischer, Freway, Gazelle, etc.
- Product code AK-EV-03
- Product type AC/DC adapter
- Supply voltage 100-240 V
- Power consumption < 2.5 A
- Efficiency > 80 %
- Output voltage 42.0 V
- Output amperage 2 A
- Outlet cord length 1 m
- Output connector Cannon (3 DIN) XLR (m)
- Maximum power 84 W
- Power inlet IEC C8
- Mechanical switch None
- Ground wire None (II protection class)
- IP Rating IP20
- OVP Yes
- OCP Yes
- OPP Yes
- SCP Yes
- Ferrite filter None
- Power cable included None
- Material ABS
- Product color Black
- Backlight color Bicolor diode
- Display None
- MTBF 10000 h
- Package EcoBox
- Product size (L x W x H) 140 x 59 x 33 mm
- Package size (L x W x H) 190 x 92 x 38 mm
- Net weight 322 g
- Gross weight 371 g
- CE compatibility Yes
- RoHS compatibility Yes
- REACH compatibility Yes
- EAN code 5901720135902
- Warranty 24 months
