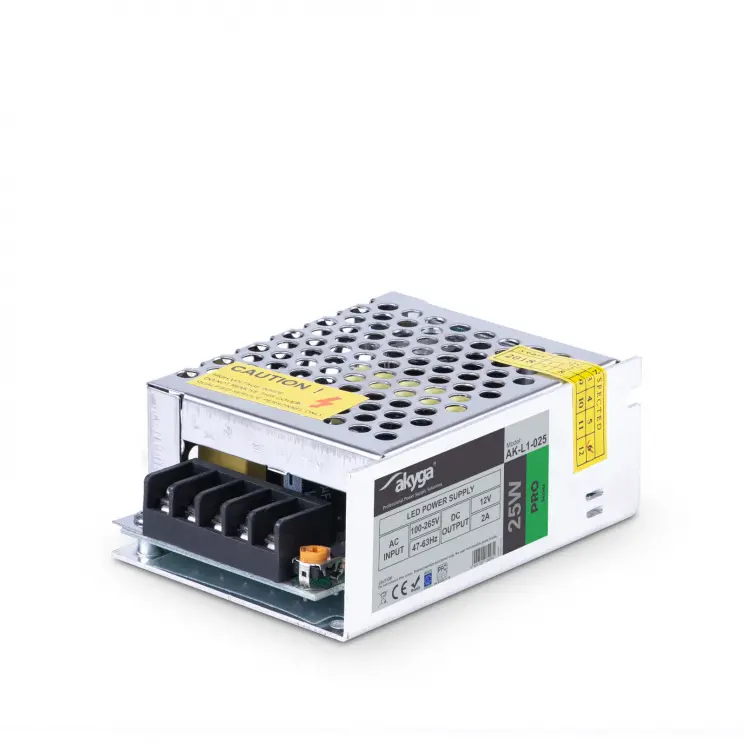

The Akyga® AK-L1-025 is a 25W power supply for industrial automation systems, machine control and lighting based on LED technology, which is used in powering LED strips, LED bulbs, LED panels, RGB LED drivers and other electronic equipment powered with 8.5 - 14V DC, which is regulated by a potentiometr. The current capacity of 2A allows to supply for example a 5m LED strip with parameters 4.8 W/m.
In order to properly match the power supply with the LED strip, multiply the length of the strip expressed in meters by the power of the tape, and then select the power supply with a margin of min. 10% to guarantee long and trouble-free system operation, unless the manufacurer of the LED strip recommends otherwise.
Features
- Product code AK-L1-025
- Product type LED power supply
- Series Pro
- Supply voltage 100-265 V
- Mechanical switch None
- IP Rating IP20
- OVP Yes
- OCP Yes
- OPP Yes
- OTP Yes
- SCP Yes
- Power supply connector Screw
- Temperature 5 - 50 °C
- Package Carton box
- Product size (L x W x H) 84x59x33 mm
- Package size (L x W x H) 90x63x39 mm
- Net weight 99 g
- Gross weight 112 g
- CE compatibility Yes
- RoHS compatibility Yes
- REACH compatibility Yes
- EAN code 5901720134974
- Warranty 24 months
