The product is no longer available

We recommend you to take a look at similar product: Power Supply ATX AK-C1-500 500W

Desctription

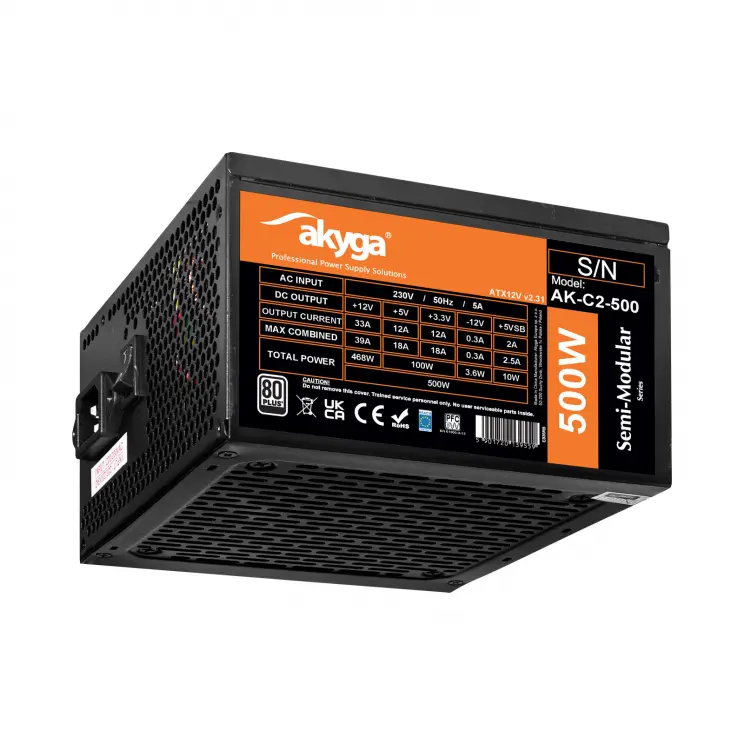

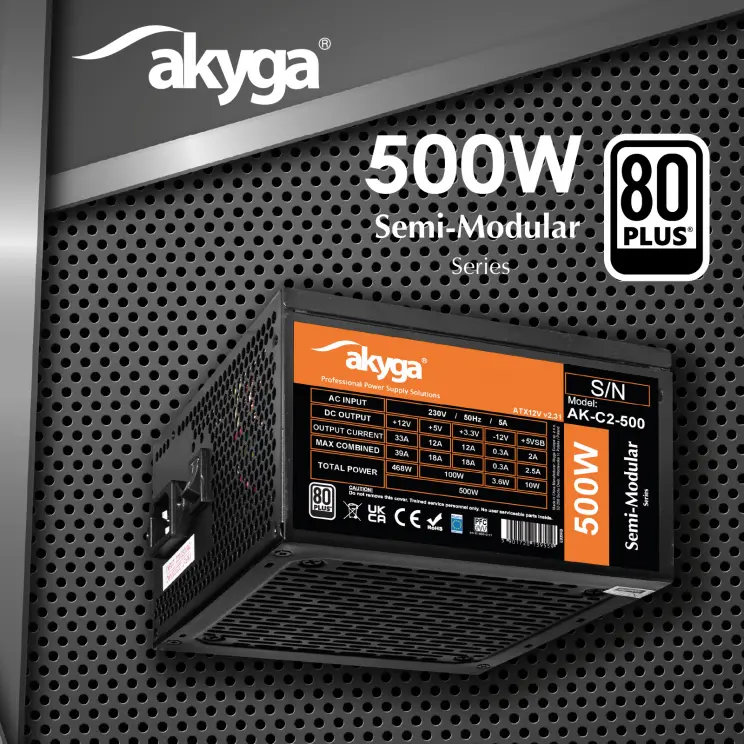

The Akyga® AK-C2-500 ATX power supply from the Classic series is a semi-modular solution designed to provide stable and reliable power to PC systems. Its actual power output is 500 W, making it an ideal choice for office PCs and standard home units. What's more, the PC power supply features 80 PLUS certification compliance, meaning that the unit operates with minimal power loss. In addition, it features active PFC, which optimises the power factor, resulting in lower power consumption.

The ATX semi-modular power supply offers a wide set of connectors. The modular cables include an 8-pin (4+4-pin) connector, 2 PCI-E 6+2-pin connectors, 2 Molex plugs and 4 SATA plugs, which will allow easy connection of multiple components such as hard drives, SSD drives, graphics cards and other peripherals. The cable with 20+4-pin connector is permanently attached to the PSU, ensuring stability of the main connection to the motherboard. The modular cables are flat for easy organisation and management inside the computer case. This makes it easy to improve airflow and simplify the process of building or upgrading a system.

The AK-C2-500 computer power supply features state-of-the-art electronic components that comply with current technological standards. Carefully selected components ensure the durability and stability of the unit, which guarantees reliability during long-term and intensive use.

The casing of the semi-modular power supply is black, which perfectly matches the aesthetics of most computer cases, adding a modern and professional look. The interior of the ATX power supply features a quiet but powerful 120mm fan, which provides excellent air circulation, keeping the unit at optimum operating temperature without increasing noise levels.

The Akyga® AK-C2-500 ATX power supply is a reliable and efficient solution for demanding users looking for a stable power source for their advanced computer systems.

Features
  • Product code AK-C2-500
  • Product type Computer power supply
  • Format ATX 2.31
  • Series Pro Modular
  • Supply voltage 230 V
  • Power consumption < 5 A
  • Efficiency > 70 %
  • 80 PLUS compatibility Yes
  • Current on the +3.3V rail 12 A
  • Current on the +5V rail 12 A
  • Maximum load on +3.3V and +5V line 100 W
  • Current on the +12V rail 33 A
  • Maximum load on 12V line 468 W
  • Maximum power 500 W
  • Mainboard Power Connector 20+4-pin
  • Power connector ATX12V P4 None
  • Power connector EPS12V 8 pin 1 pc ( 4 + 4-pin )
  • Power connector PCI-E 6 pin None
  • Power connector PCI-E 6+2 pin 2 pcs
  • Power connector PCI-E 8 pin None
  • Molex connector 2 pcs
  • SATA connector 4 pcs
  • Modular power supply Semi-modular
  • PFC filter Active
  • Mechanical switch Yes
  • Ground wire Yes
  • OVP Yes
  • OCP Yes
  • OPP Yes
  • OTP Yes
  • SCP Yes
  • UVP None
  • Power supply connector IEC C14
  • Fan size 120 mm
  • Fan adjustments Automatic
  • Cable length 50 - 70 cm
  • The cable plug #1 Hybrid standard C/E/F ( CEE 7/7 )
  • The cable plug #2 IEC C13
  • Power cable included Yes
  • Material Galvanized steel
  • Product color Black
  • MTBF 100000 h
  • Temperature 5 - 50 °C
  • Package EcoBox
  • Product size (L x W x H) 150 x 140 x 85 mm
  • Package size (L x W x H) 235 x 180 x 100 mm
  • Net weight 1.7 kg
  • Gross weight 1.8 kg
  • CE compatibility Yes
  • FCC compatibility No
  • RoHS compatibility Yes
  • REACH compatibility Yes
  • EAN code 5901720139559
  • Warranty 24 months
