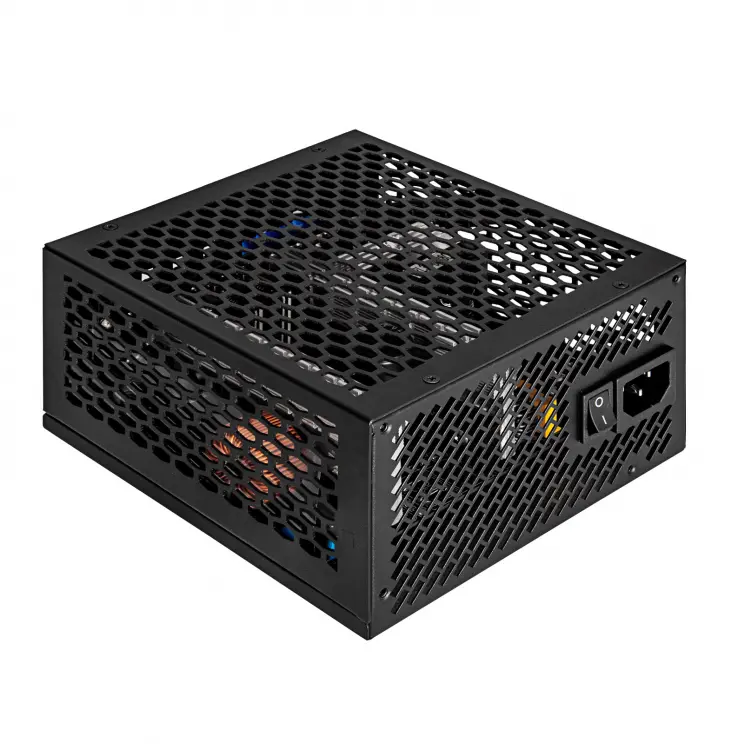

The ATX power supply, Akyga® AK-FL-500, with a 500 W capacity, stands out due to its modular design. The absence of permanently attached cables offers greater flexibility in cable management within the computer case. This not only facilitates assembly but also promotes better airflow and an elegant appearance of the case interior. Therefore, it is the ideal solution for computer enthusiasts who appreciate glass cases and want to emphasise the aesthetics of the entire set-up.
Another advantage of the AK-FL-500 power supply is its fanless construction. Thanks to it, the power supply operates in complete silence, which is a big advantage over traditional ATX PSU. Thus, the user not only gains peace of mind, but also the possibility to choose his own cooling system in the computer. What's more, the power supply has a high energy efficiency that meets the 80 PLUS certification, which means efficient and economical energy consumption.
The AK-FL-500 power supply is fully modular. Its cables include:
- P1 (20+4-pin) for connecting the motherboard,
- P8 (4+4-pin) for additional CPU power supply,
- PCI-e 4+4-pin for graphics cards,
- 4 SATA connectors for HDD/SSD,
- and 2 Molex connectors for older components.
- Product code AK-FL-500
- Product type Computer power supply
- Format ATX 2.31
- Series Fanless
- Supply voltage 230 V
- Power consumption 5 A
- Efficiency > 80 %
- 80 PLUS compatibility Yes
- Current on the +3.3V rail 18 A
- Current on the +5V rail 18 A
- Maximum load on +3.3V and +5V line 75 W
- Current on the +12V rail 41.7 A
- Maximum load on 12V line 412 W
- Maximum power 500 W
- Mainboard Power Connector 24-pin
- Power connector EPS12V 8 pin 1 pc ( 4 + 4-pin )
- Power connector PCI-E 6+2 pin 1 pc
- Molex connector 2 pcs
- SATA connector 4 pcs
- Modular power supply Yes
- PFC filter Active
- Mechanical switch Yes
- Ground wire Yes
- OVP Yes
- OCP Yes
- OPP Yes
- OTP Yes
- SCP Yes
- UVP Yes
- Power supply connector IEC C14
- The cable plug #1 Hybrid standard C/E/F ( CEE 7/7 )
- The cable plug #2 IEC C13
- Power cable included Yes
- Material Galvanized steel
- Product color Black
- MTBF 100000 h
- Temperature 0 - 40 °C
- Package EcoBox
- Product size (L x W x H) 85 x 150 x 160 mm
- Net weight 1367 g
- Gross weight 1648 g
- CE compatibility Yes
- RoHS compatibility Yes
- REACH compatibility Yes
- EAN code 5901720139306
- Warranty 24 months
