Rubber plugs on connectors
The adapter has special rubber plugs. These are designed to protect the contacts against tarnish and accidental dirt during storage.
Useful materials
- Conversion – the adapter allows the transition between Type2–Type1 connector standards, which allows the user to charge an electric vehicle regardless of the standard supported at the station
- Convenience – the adapter is small and has a short cable, so it does not take up much space and you can always have it in your car
- Resistance – the device is characterized by high resistance to mechanical damage due to falling or pressure
Features
- Product code AK-EC-10
- Product type Electric Car Accessory
- Hole for padlock Yes
- Supply voltage 110-250 V / 50/60 Hz
- Number of phases 1 phase
- Maximum current 32 A
- Maximum power 7.2 kW
- Flame resistance UL94V-0
- IP Rating IP54
- Cable length 0.5 m
- The cable plug #1 Type 1 (J1772) Female Connector
- The cable plug #2 Type 2 (IEC 62196-2) Male Connector
- Cable material Copper
- Wire gauge 3 x 6 mm2 + 2 x 0.5 mm2
- Isolation material TPE
- Material ABS
- Temperature -30 / +50 °C
- Package Protective bag
- Product size (L x W x H) 800 x 150 x 85 mm
- Package size (L x W x H) 380 x 380 x 100 mm
- Net weight 0.91 kg
- Gross weight 1.25 kg
- CE compatibility Yes
- FCC compatibility Yes
- RoHS compatibility Yes
- REACH compatibility Yes
- Included accessories AK-AC-02
- EAN code 5901720136824
- Warranty 24 months
Charge your electric car from any Type 2 charger

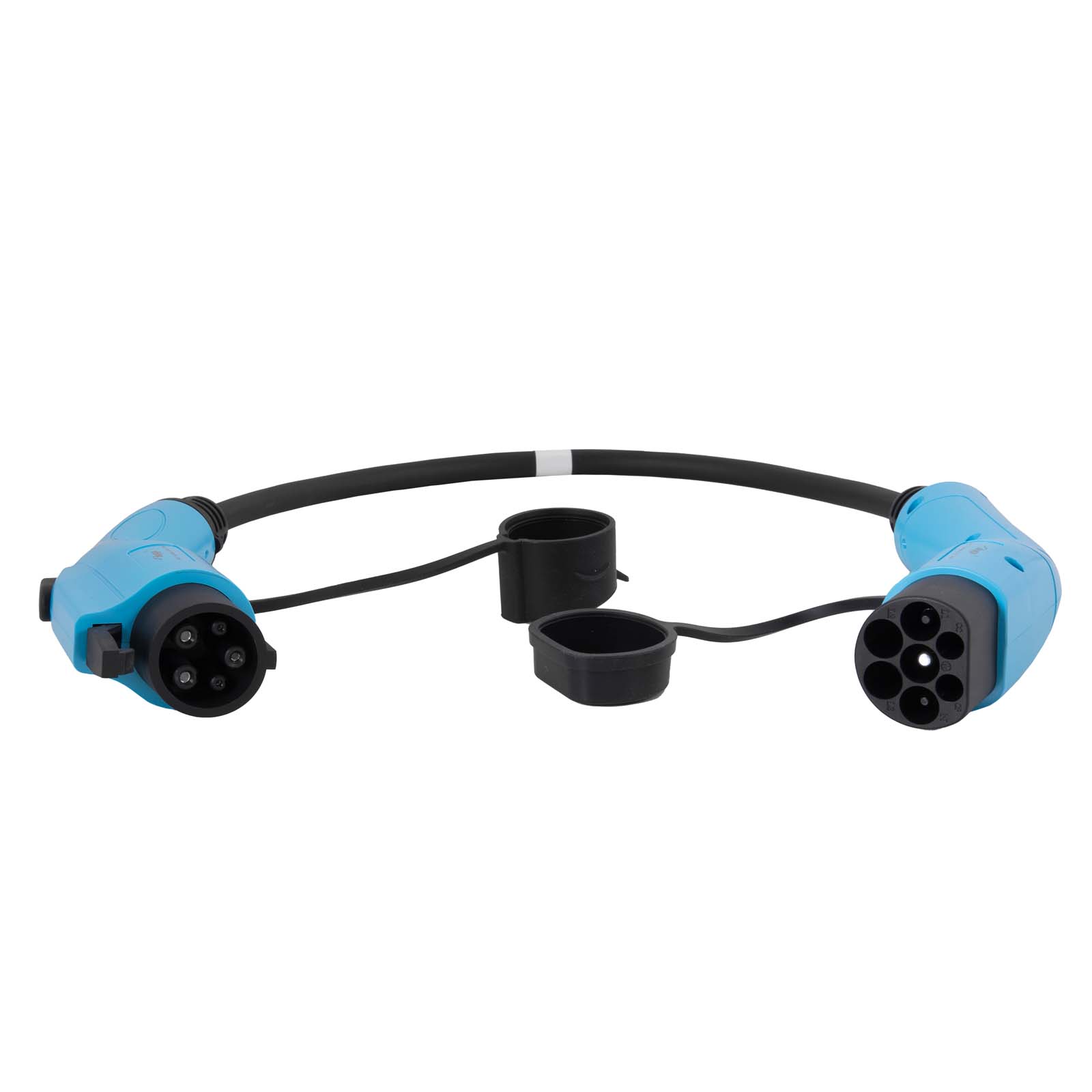

The Akyga® AK-EC-10 adapter converts an European Type 2 connector to an American Type 1 connector. It is a handy 0.5 m cable which will save many situations. Cars charging via Type 1 socket are less and less popular in Europe, so this connector is not always available on public EVSE charging stations. In this situation, the Type 2 - Type 1 adapter will allow you to charge your car using a standard Type 2 connector (IEC 62196-2).
Handy car charger adapter
Connector |
Connector |
Current allowed |
Cable length |
The adapter is small, so that it doesn't significantly increase the volume of the entire vehicle charging kit. Thus, the relatively short cable eliminates the formation of leverage. This makes the conversion 100% safe for the car socket. What's more, the car power adapter supports a 32 A fast charging. This is made possible by thick copper wires and robust contacts in the plugs.
Highest durability and unlimited charging
Fire Resistance |
Mechanical strength |
Level of security |
Strength |
The charging cable adapter has been made with the utmost care for safety. The materials used are designed to protect not only against the potential impact of the adapter, but also unfavourable weather conditions. The high protection class IP54 guarantees resistance to splashes. On the other hand, the insulation of the cable meets the UL94V-0 flammability class standard, so in case of an unintentional fire, the flame will not spread. What's more, the robust connectors will allow more than 10,000 charging connections, thus resisting accidental drops from a height of 1 m and pressure of up to 2 tons.
When to choose an adapter?
Depending on what our needs are, we will use a cable or an adapter. It all depends on what kind of electric car we have and which charging station we use on a daily basis. Do you know in which situations you will use a cable and in which you will use an adaptor? If you are not sure which solution is best for you, read the article Electric cars - what are they and how to charge them?
Storage cover
Each electric car charging adapter is packed in a practical carrying case. This enables you to transport the adapter safely and makes it easier to keep it tidy in the trunk.
Compatible with cars:
- Nissan Leaf
- Nissan NV200 SE VAN
- Citroen C-Zero
- Fisker Karma
- Ford Focus Electric
- Ford C-Max Energi
- Peugeot iOn
- Peugeot Galicia
- Opel Ampera
- Chevrolet Volt
- Smiths Edison VAN
- Smiths Newton
- Tata Indica Vista EV
- Toyota Prius
- Mistubishi I-Miev
- Mitsubishi Outlander PHEV
- Mia Electric Van
- Mia Electric Car
- Kia Soul
